Function of LPG skid mounted gas station

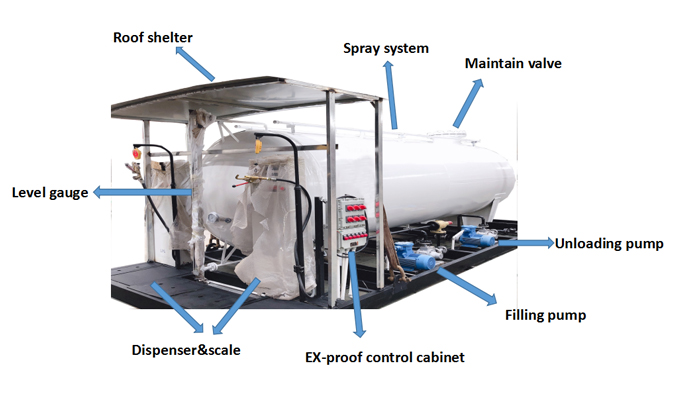

LPG skid-mounted refueling station is an integrated assembled refueling station formed by integrating individual components such as storage tanks, pumps, valves and metal skids, with less investment, less land occupation, compact operation, flexible movement, and construction cycle Short advantages.

LPG skid-mounted filling stations have the following functions:
1. Refuel gas cars: Equipped with high-quality refills, accurate and stable measurement;
2. Unloading truck: LPG tank truck can smoothly unload the media into the skid storage tank;
3. Sewage discharge: discharge the sundries and other debris in the storage tank through the sewage outlet;
4. Drain: Residual pressure in the tank can be removed through the drain during maintenance;
5. The two pumps are interchangeable: the filling pumps can be replaced with each other under fault conditions;
6. Inverted: can put the liquid in the storage tank into the tank car and transport it away;
7. Emergency shutdown: The liquid phase outlet of the storage tank is equipped with a pneumatic emergency shut-off valve, which can realize emergency shutdown under abnormal conditions;
8. Leak alarm: There are leak probes in key parts of skid-mounted stations to detect the safety status of the equipment;
9. Liquid level alarm: equipped with upper and lower liquid level limit switches, with liquid level alarm and control functions;

The LPG skid-mounted station is to assemble all the equipment of the filling station, as long as the ground is leveled, leaving the access to the electric wire hole, it is hoisted in place, the tank is filled with gas, connected to the power supply, and immediately used for business. It can adapt to the rapid development of urban planning, and realize the flexibility to move freely. It is equipped with two pumps, a dump pump and a twin-screw pump, which can be used alternately to meet the effects of automobile refueling and cylinder filling.

The liquefied petroleum gas in the filling station is a Class A flammable and explosive medium with complete safety facilities. A flammable gas detection alarm is installed on the skid. When the flammable gas reaches 20% of the lower explosive limit, an alarm system is triggered to ensure the filling station safety. Second, there is no pressure and liquid level detection system on the storage tank, liquid phase outlet pipe, gas phase inlet and outlet pipe, gas dispenser liquid phase inlet pipe, gas phase outlet pipe are all equipped with pneumatic emergency cut-off. In the accident state, the emergency cut-off button can , Isolate each major equipment, and there is a safety valve on the tank top, and a pipeline safety valve is set on the liquid-phase closed pipeline to ensure the safety of the protection device when the system is overpressured. In addition, the car refilling hose adopts a detachable push port. If the hose is opened, the mobile loading device that can open the push port and cut off the medium is equipped with complete lightning protection and antistatic.
