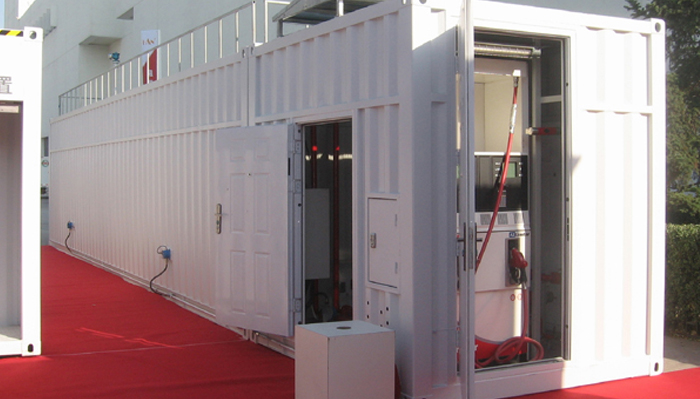

Technical requirements for mobile fuel device

1. The oil tank should adopt the upper oil inlet mode. If the inlet pipe joint is located at the lower part, the high point of the inlet pipe should be higher than the highest level of the tank. Hose fittings should be fast self-sealing joints.

2. Skid-mounted fueling devices must be fireproof and explosion proof. The skid-mounted fueling device shall be supplied as a whole product and supplied by the supplier as a whole. The fireproofing, explosion-proof performance and performance of the automatic fire extinguisher of the oil storage tank shall be tested and certified by the relevant state agencies.

3. The oil storage tank of the mobile fuel device should be able to withstand the 1h standard flammable liquid fire at 90% load without the phenomenon of tank leakage, tank failure and pressure relief function being blocked.

4. The fuel oil storage tank should be pressure tested. The pressure test of the oil tank shall comply with the provisions of the current national standard "Code for Design and Construction of Automobile Refueling and Gas Filling Stations" GB50156, Section 12.2.

5. When the fuel filling station equipment adopts double-walled oil tanks, an oil leakage monitoring device shall be provided at the bottom between the two tank walls.

6. Skid-mounted fueling devices shall be equipped with lightning protection and anti-static facilities, and shall comply with the relevant provisions of the current national standard "Code for Design and Construction of Automobile Refueling and Gas Filling Stations" GB50156. 7. The height of the oil storage tank outlet pipe from the bottom of the tank shall not be less than 0.1 5m.

8. mobile fuel device devices should be provided with containers for spilling oil when unloading oil.

9. The starting temperature of the automatic fire extinguisher should not exceed 95 degrees

10. The height of the oil pipe outlet pipe from the bottom of the oil tank shall not be less than 0.1 5m.

11. The fuel oil storage tank of skid-mounted gasoline station shall be provided with high liquid level alarm, liquid level gauge, automatic fire extinguisher, emergency pressure relief device, anti-overflow device and internal combustion suppression device. The oil outlet pipeline should be provided with a high-temperature automatic oil cutoff protection valve.
