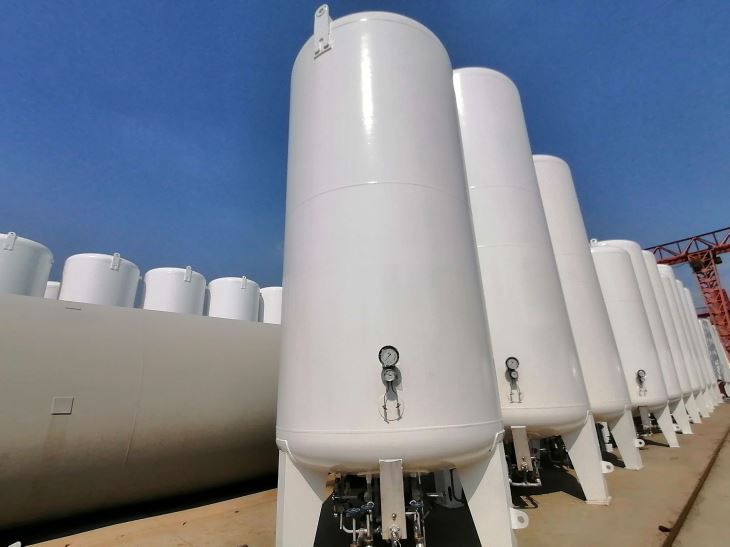

10M3 size LNG tank

Content

LNG provides for efficient storage and transportation of natural gas, and is vaporized for use by customers. LNG is generally stored in large-volume above-ground low-pressure (less than 5 pounds per square inch gauge) tanks. The tank is double-walled, with a carbon steel outer wall and a nickel-steel inner tank.

Inquiry
