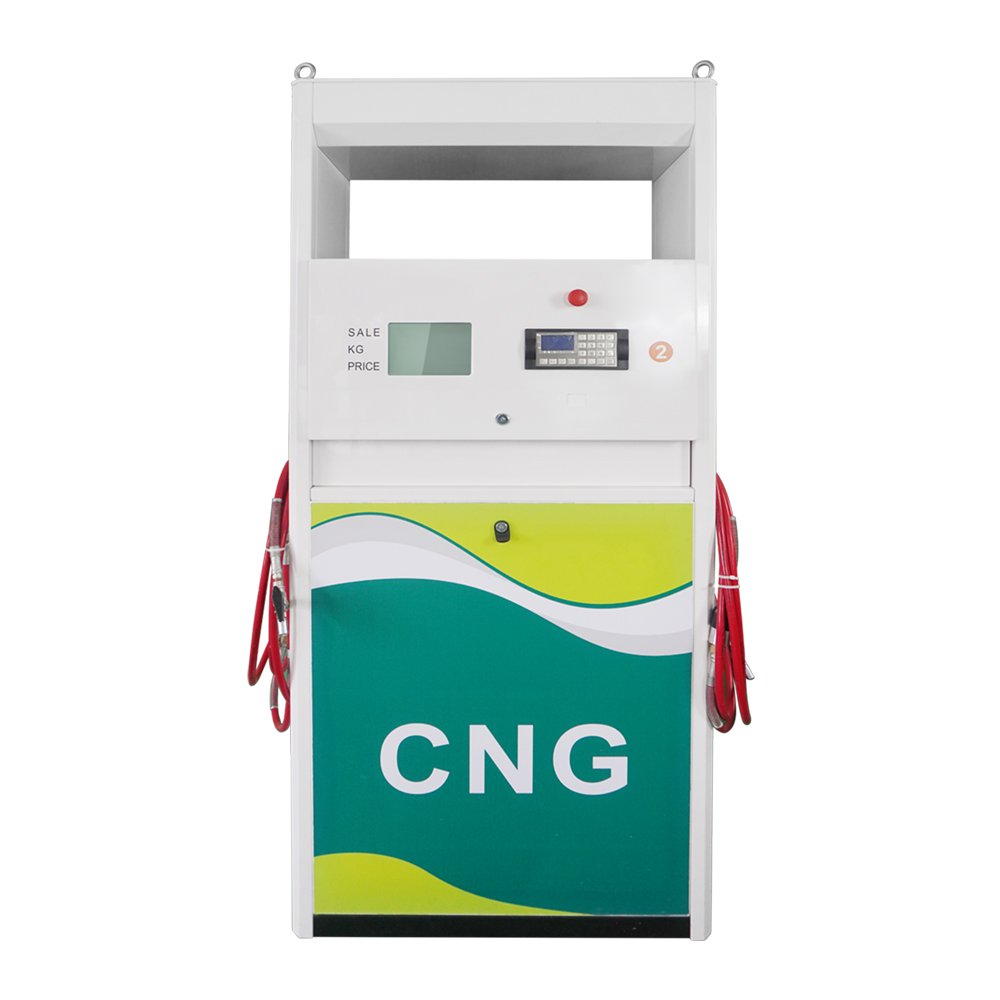

CNG filling Station Safety Distance Requirements

Safety distance between CNG storage cylinders and three kinds of civil buildings 18m Safety distance between CNG storage cylinders and roads 12m Safety distance between CNG storage cylinders and ga...

CNG tube-bundle container is the gas source of CNG filling sub station

Comparative Analysis: Dewar Flasks vs. Modern Low-Temperature Storage Tank Technology

Content

Safety distance between CNG storage cylinders and three kinds of civil buildings 18m

Safety distance between CNG storage cylinders and roads 12m

Safety distance between CNG storage cylinders and gasoline tanks 6m

Safety distance between CNG cylinder and diesel tank 4m

Safety distance between CNG cylinder and gasoline vent pipe 8m

Safety distance between CNG cylinder and diesel oil vent pipe 6m

Safety distance between CNG cylinder and oil unloading point 6m

Safety distance between CNG cylinder and fuel dispenser 6m

Safety distance between CNG cylinder and station building 5m

Safety distance between CNG cylinder and enclosure wall 3m
