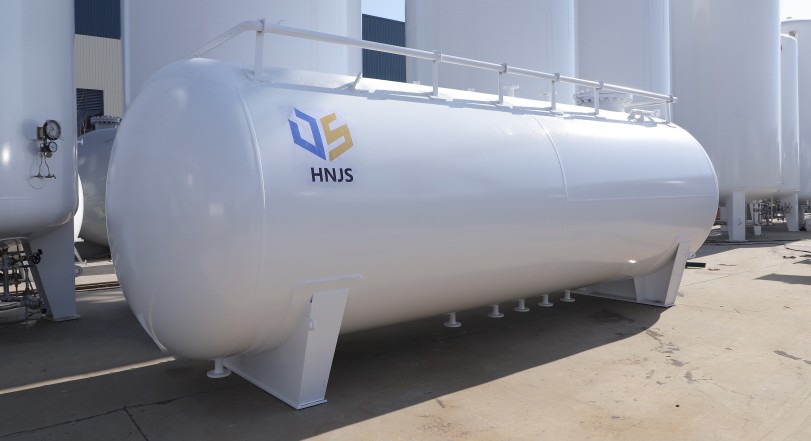

Comparison of ASME VIII DIV low pressure pressure vessel and GB standard design

Correspondence between Chinese and American pressure vessel standards: GB 150 Steel Pressure Vessel Vs ASME SECTION VIII DIVISION 1 JB4732 steel pressure vessel, analysis and design standard Vs ASM...

GB150 Gas pressure vessels advantages

Update of ASME Design Code

Content

Correspondence between Chinese and American pressure vessel standards:

GB 150 Steel Pressure Vessel Vs ASME SECTION VIII DIVISION 1
JB4732 steel pressure vessel, analysis and design standard Vs ASME SECTION VIII DIVISION 2
JB4709 Welding Code for Steel Pressure Vessels Vs ASME SECTION IX
JB4730 Nondestructive Testing of Pressure Vessels Vs ASME SECTION V
GB 151 Shell and Tube Heat Exchangers Vs TEMA

In the process of designation and revision, Chinese pressure vessel standards mainly refer to ASME, and also refer to the pressure vessel codes of other developed countries, such as BS5500 etc, most of which are consistent with ASME, and some requirements are more stringent.
